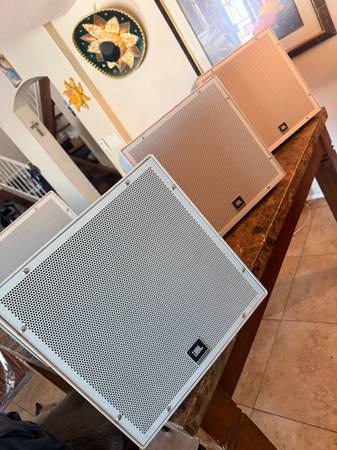

4 JBL AWC129 Like New Condition Buy 4 for the Price of one - $999 (Gilbert)
condition:
like new
model name / number:
JBL
QR Code Link to This Post
The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types. SPECS
General Specifications
Frequency Range (-10dB)
55 Hz – 20 kHz
Frequency Response (±3 dB)
80 Hz – 20 kHz
Coverage Pattern
90° x 90°
Directivity Factor (Q)
10.1 (1 k – 16 kHz)
Directivity Index (DI)
9.5 dB (1k – 16 kHz)
System Power Rating
400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs
Sensitivity (2.83V @ 1m)
96 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL (1m)
Direct 8Ω = 122 dB (peaks of 128 dB) 200 W Tap = 119 dB
Crossover Network
1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance
8 ohms
Transformer Taps
70V = 200W, 100W, 50W, 25W ; 100V = 200W, 100W, 50W
LF Driver
Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil
HF Driver
25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling
HF Driver Protection
Minimum audibility SonicGuard™ HF overload protection
Enclosure
ABS with Glass enclosure, heavily braced
Attachment
Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
Grille
Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing
Input Connection
CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
Environmental
IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).
