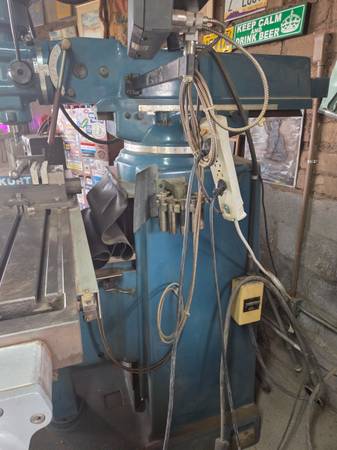

ATRUMP Vertical Milling Machine - $5,150 (Mesa)
QR Code Link to This Post
All of the functions work perfectly.
Weighs about 3,000 pounds.
5′ L x 6’5″ W x 7’10” H
Table Size: 11″ x 58″
X-Axis Travel: 40-3/4″
Y-Axis Travel: 17″
Z-Axis Travel(Knee): 19-5/8″
Quill Travel: 4-7/8″
Quill Feed: 0.002″, 0.004″, 0.006″
Spindle Taper: R8
Spindle Speeds: 70 – 4200 RPM
Spindle Motor: 3
Electrical: 220V/3PH
Equipped With Newall 2-Axis Digital Readout (DRO), Align X-Axis Power Feed, Align Y-Axis Power Feed, Kool Mist Coolant System, One-Shot Lubrication System, Quill Fine Feed with Micrometer Dial (.001″ Graduations), Graduated Swivel Head with Degree Scales, Graduated Knee Elevation Dial, Chrome Handwheels & Handles, Way Covers (Front & Rear Bellows), Emergency Stop, Drill chuck.
Included are all the accessories shown in the pictures.
Located near Hawes and McDowell in northeast Mesa.
Cash only please.
