Custom Toy Hauler & Utility 8' x 16' - $4,150 (Desert Hills - N. Phoenix)
W. Desert Hills Dr. near 7th Avenue
QR Code Link to This Post
Price Reduced from $4,795

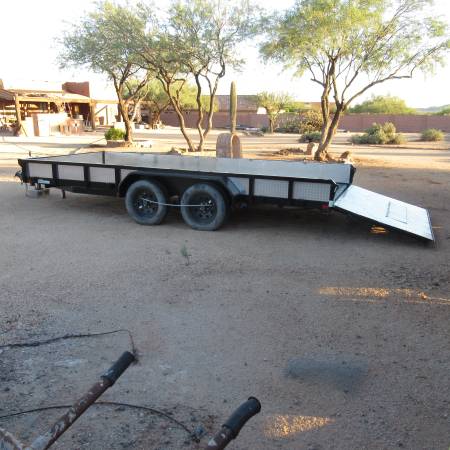

8' X 16' Car Hauler Trailer, upgraded to a versatile Utility Trailer. 3 mm thick x 13" high, Pre-Cut, Diamond Plate Aluminium is mounted to close in both side rails and the front rail. The 78" wide x 49" high tailgate is also covered with Diamond Plate Aluminium. A 44" wide x 10" high window, with a door, is cut in the tailgate aluminium plate for vision when backing up.The tailgate aluminium plate can be removed if preferred. The aluminium sides and front enclosure stop road rocks, prevent cargo from sliding out and debris from blowing out. This Versatile Trailer can be used as a Car or Toy Hauler, Utility Trailer or a Landscaping Trailer. The Trailer is capable of hauling 2.5 tons (5,000 lbs.) of gravel, without using tarps or ply wood to hold it in.
Max Cargo weight: 5210 lbs.
Additional upgrades made to the trailer: The trailer was built with 9 steel support beams under the deck with only 5 beams doubled bolted, thru the 7" wide deck boards, to the steel support beams. The 4 additional steel support beams have also been double bolted thru the deck boards at each beam crossing. Stabilizing the trailer deck and stops the deck boards from twisting, warping, vibrating or rattling. Eleven tie down D-Hooks, 4 on each side wall, connected to the 2" square stock, and 3 across the front deck, thru the floor are also installed.
In early October 2025, the trailer wood deck was sanded down to raw wood and sealed with two coats of marine CPES, clear penetrating epoxy sealant, a marine wood waterproofing sealant. Then the sealed wood deck was coated with four coats of UV resistant clear epoxy resin. In addition, the trailer was detailed and the deck lock nuts under the deck were torqued down. The pre-cut, 3 mm thick, Aluminium Diamond Plate, deck bolts and lock nuts, aluminium side fasteners, epoxy sealants and d-hooks total materials costs was over $1,600. The Trailer was lightly used for less then 200 miles and is in Like New Condition.
H&H Trailers, USA.
"Built to a Quality Standard, Not to a Price Point".
Specifications:
Quality built, clean robotic welds.
National Association of Trailer Manufacturers Compliant.
Car/Toy Hauler Upgraded to a sided versatile utility trailer.
Year: 2021.
Size: 8' x 16'.
Deck size: 82" x 16'.
Cargo weight: 5210 lbs.
Lippert dual axles 3,500 lbs each.
Straight round thick steel, cambered axles.
Lippert Quality 4 leaf spring suspension system with center pivots.
Electric Brakes.
Battery, switch, and lanyard breakaway system.
DOT compliant safety chains.
2-5/16" A-Frame, posi-lock coupler.
Fenders: 7" wide diamond plate steel gloss black, outside of deck.
Drop foot jack - manual crank.
Round 7-pin blade connector plug.
Full Led, DOT compliant exterior lights
Led 8 round side markers - 2 yellow & 2 red on each side.
Led tail lights and a center rear light
Led license plate light
Wiring harness is sleeved and sealed
Easy Lube Hubs - Grease zerks on wheel hubs with full rubber caps
Spare tire carrier exterior storage, welded on 3" stock
8 Stake pockets, welded on 3.75" wide 4 per side
Spring assisted, 3-position tailgate - down ramp - straight up - folded into trailer deck
Wheels: 15" 8-hole steel black
Tires: Castle Rock ST Radial 205-75-R15 - Balanced
Trailer color: baked gloss black
Diamond plate aluminium sides, front and tailgate
Side rails and front rail are 2" square steel stock
Deck wood is bolted to all 9 steel cross beams
Deck color Natural wood,
Wood Sealant: CPES marine epoxy sealant, 2 coats and UV resistant epoxy clear coat 4 coats
Bolt on exact parts are available
GVWR 7,000 lbs
Accessories included:
Tongue storage box, 4 new tire off ground parking ramps, a new cargo bar and a trailer coupler lock
Nationwide H&H Dealer Network Services are Available
Arizona Dealers:
Deer Valley Trailers, Phoenix, AZ
Diversified Truck & Equipment, Mesa, AZ
Haulinit Trailers LLC, Lake Havasu City, AZ
Visit their Website:
H&H Trailers, Clarinda, Iowa USA
Thank You for looking. Price Reduced
$4150 - cash only - No tax - private party
For more information: Text or Phone: 602-505-4373.
